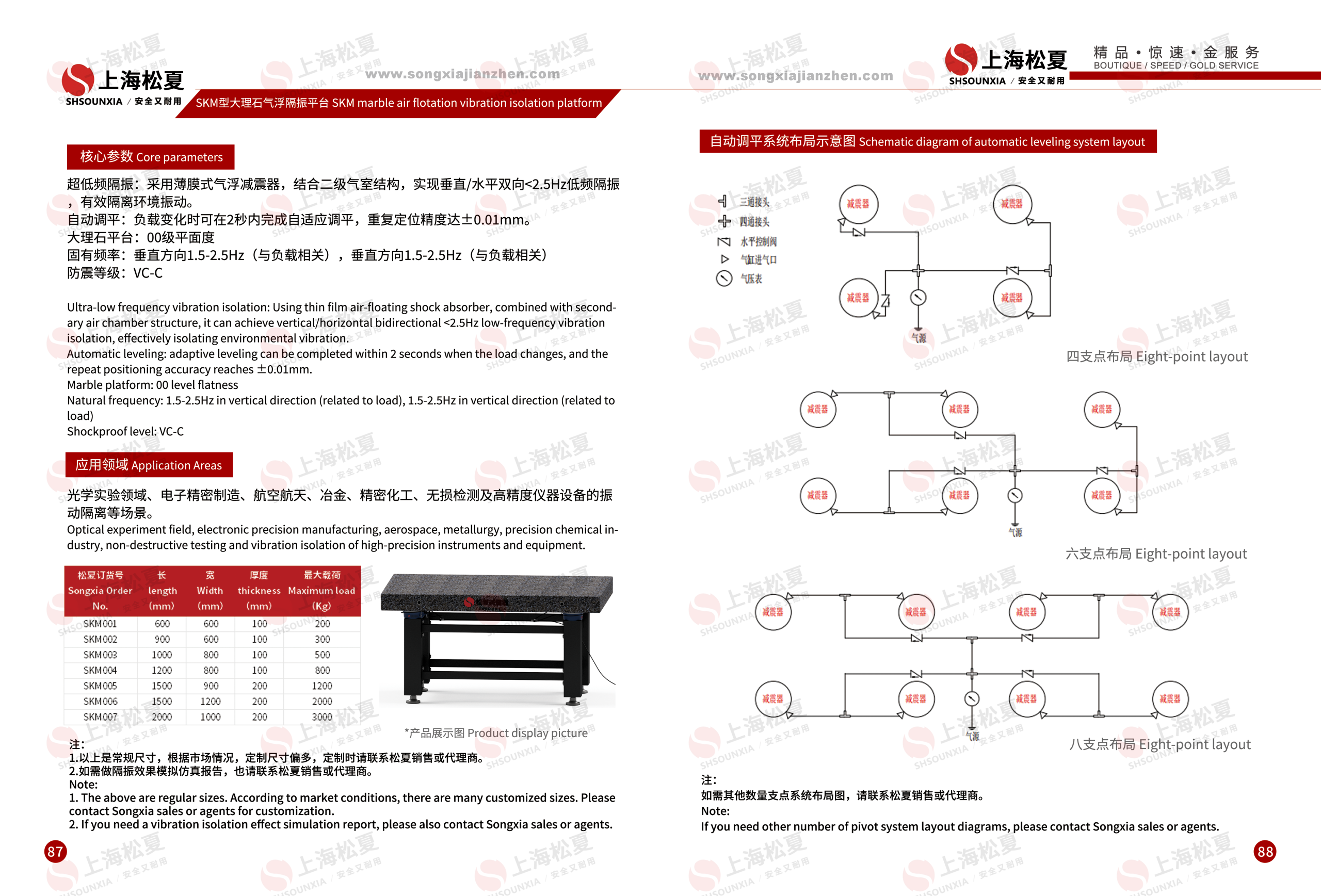

核心参数 Core parameters
超低频隔振:采用薄膜式气浮减震器，结合二级气室结构，实现垂直/水平双向<2.5Hz低频隔振有效隔离环境振动。
自动调平:负载变化时可在2秒内完成自适应调平，重复定位精度达土0.01mm。
大理石平台:00级平面度
防震等级:VC-C
Ultra-low frequency vibration isolation: Using, thin film air-floating shock absorber, combined with second.ary air chamber structure, it can achieve vertical/horizontal bidirectional <2.5Hz low-frequency vibration isolation,effectivelyisolating environmental vibration.
Automatic leveling: adaptive leveling can be completed within 2 seconds when the load changes, and therepeat positioning accuracy reaches 士0.0lmm.
Marble platform: 00 level flatness
Shockprooflevel: VC-C
应用领域 Application Areas
光学实验领域、电子精密制造、航空航天、冶金、精密化工、无损检测及高精度仪器设备的振动隔离等场景。
Optical experiment field, electronic precision manufacturing, aerospace, metallurgy, precision chemical in.dustry, non-destructive testing and vibration isolation of high-precision instruments and equipment.
注:
- 以上是常规尺寸，根据市场情况，定制尺寸偏多，定制时请联系松销售或代理商。如需做隔振效果模拟仿真报告，也请联系恒盛销售或代理商。
Note:
- The above are regular sizes. According to market conditions, there are many customized sizes. Pleasecontact Songxia sales or agents for customization.2. lf you need a vibration isolation effect simulation report, please also contact Songxia sales or agents.
